50nm Maleimide-Activated Gold NanoUrchins Conjugation Kit (MIDI Scale-Up Kit)
RN-CY-MUG10K-50-3
Cytodiagnostics 50nm Maleimide-activated Gold NanoUrchin Conjugation Kit has been optimized for high efficiency one-step conjugation of thiol-containing ligands to gold Gold NanoUrchins.
The kit contains ready-to-use pre-made mixtures. No activation or manipulation of the gold nanourchins is required prior to conjugation, which often results in poor performing conjugates. Simply mix your protein with the pre-activated Maleimide gold nanourchins supplied in the kit.
This MIDI kit contains 1 vial with lyophilized Maleimide-activated gold nanourchins for performing one independent scale-up conjugation reaction.
Lateral Flow, MIDI Scale-Up Kit

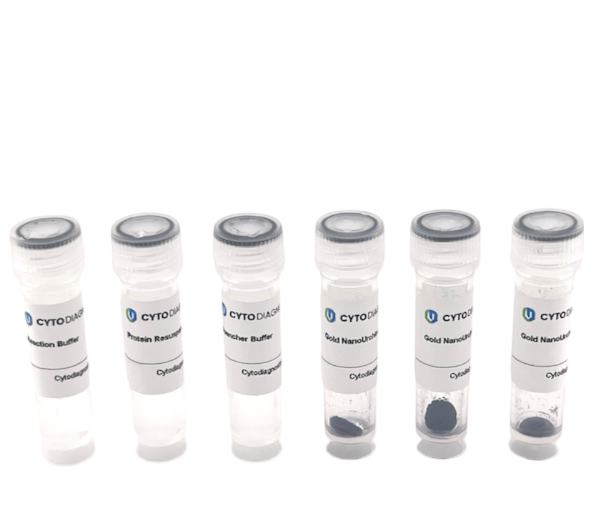

Kit Components
- 50nm Maleimide-Activated Gold NanoUrchins (lyophilized) – 1 vial
- Protein Resuspension Buffer
- Reaction Buffer
- Quencher Solution
Features & Benefits
- Results in covalently bound ligand and more stable conjugate.
- Fast and convenient one-step conjugation reaction with no pre-activation requirements.
- Spacer between the gold surface and conjugated ligand minimizes effects on the tertiary protein structure, which can lead to poor performing conjugates, a common problem seen in conjugates prepared by passive adsorption.
- Precisely engineering surface coating that reduces non-specific protein binding in biological assays.
Gold Nanoparticle Specifications
Surface functionality: Maleimide (~ 1 Maleimide group/nm2) (10kDa PEG-spacer between gold surface and Maleimide-group)
Core diameter: 50nm
Concentration: OD=20 (when dissolved to a final volume of 1ml)
Particles per ml: ~7.02E+11 (when dissolved to a final volume of 1ml)
Absorbance (lambda max): 560nm
| Diameter | Peak SPR Wavelength (nm) | NPS/ml* | Wt. Conc. (mg/ml)* | Molar Ext. (M-1cm-1) | Size Dispersity (+/-nm) | Particle Volume (nm3) | Surface Area (nm2) | Surface/Volume Ratio | Particle Mass (g) | Molar Mass (g/mol) | Molar Concentration* |
| 50 | 560 | 3.512E+10 | 4.45E-02 | 1.72E+10 | <12% | 6.54E+04 | 7.85E+03 | 0.12 | 1.27E-15 | 7.64E+08 | 5.83E-11 |
* All concentrations as indicated at an optical density of 1 (OD=1, i.e. absorbance at peak SPR wavelength with a 1cm pathlength)
QC Conjugation Kit – Product Sheet
